Plastic pallet sizes are usually written in millimetres as length × width × height. The footprint must suit the cargo, handling equipment, storage system and shipping plan. A familiar size is only a starting point. Two pallets with the same footprint can have different decks, bottom structures and load ratings.
This guide compares three common footprints used by export buyers and explains what to confirm before choosing a model.
Common plastic pallet sizes at a glance
| Footprint | Approximate inches |
|---|---|
| 1200 × 1000 mm | 47.2 × 39.4 in |
| 1200 × 800 mm | 47.2 × 31.5 in |
| 1100 × 1100 mm | 43.3 × 43.3 in |
| Custom or oversized | Project specific |

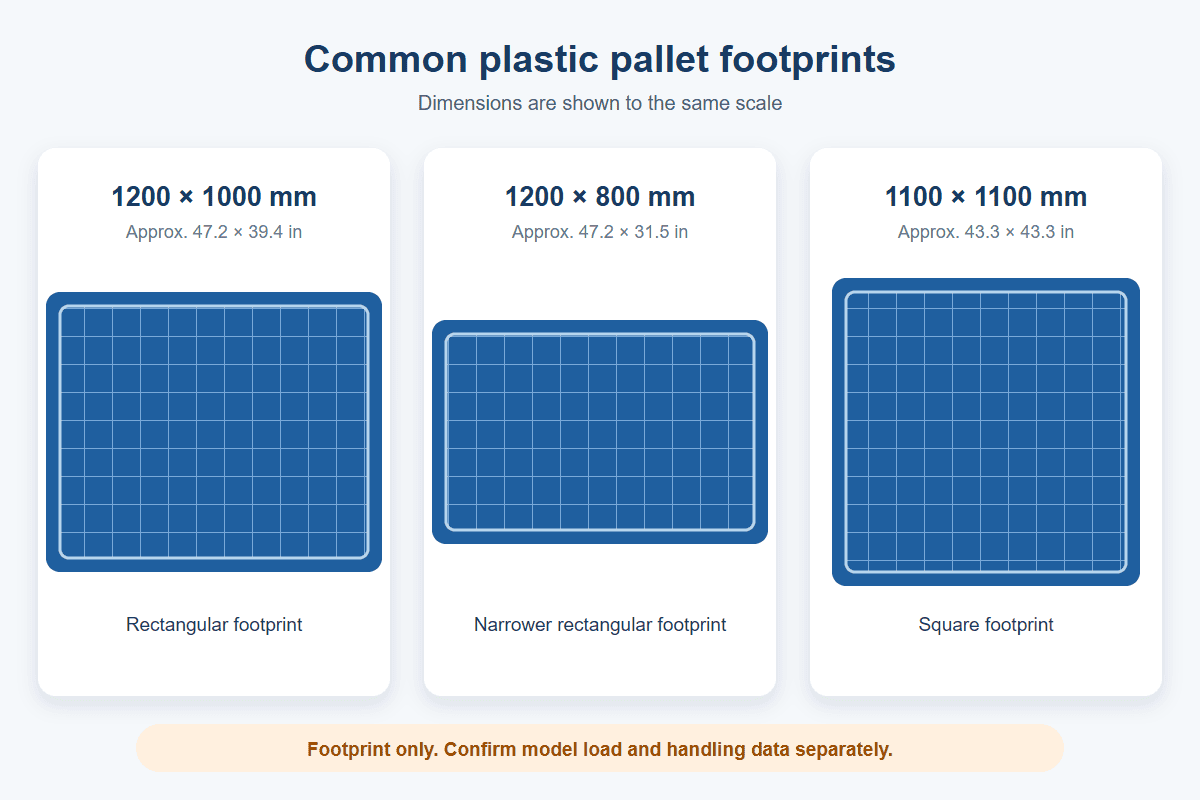

The diagram compares footprint only. It does not indicate load capacity, reinforcement or racking suitability.
Why pallet dimensions matter
A pallet must support the packaged load without excessive overhang. It also needs to work with the forklift or pallet jack, warehouse aisle, rack opening and container plan. Choosing a larger footprint than the cargo needs can waste shipping and storage space. Choosing one that is too small can leave the load poorly supported.
Before comparing models, record the cargo length, width, unit weight and packaging method. Then check the required static, dynamic and racking conditions separately.
1200 × 1000 mm plastic pallets
The 1200 × 1000 mm footprint is used for a broad range of industrial and warehouse loads. The available structure matters as much as the outside dimensions. Buyers may need a grid or flat deck, runners, a double deck, or steel reinforcement depending on the actual handling and storage conditions.
For model-level information, compare the 1200 × 1000 heavy-duty six-runner pallet and the 1200 × 1000 reinforced flat deck pallet. Use each product page, drawing and quotation to confirm its real specifications.
1200 × 800 mm plastic pallets
The 1200 × 800 mm footprint is commonly associated with European logistics. It can suit cartons and handling systems designed around this narrower base. Confirm the usable deck area as well as the outside dimensions, especially when packaged goods sit close to the pallet edge.
Do not assume that every 1200 × 800 mm pallet has the same entry arrangement or load rating. Check the deck, bottom structure and intended handling method for the selected model.
1100 × 1100 mm plastic pallets
The square 1100 × 1100 mm footprint can provide balanced support for bulk bags and other square loads. An export buyer handling FIBC goods can review the 1100 × 1100 nestable ton bag pallet as one available example.
The model name and footprint do not replace a load check. Confirm the packed bag dimensions, total weight, lifting method and whether the pallet will be reused.
Custom and oversized footprints
Some cargo needs a larger or non-standard platform. Current Zhenghao product options include footprints such as 1300 × 1100, 1400 × 1200 and modular oversized formats. The right choice depends on the available model and the project requirements.
For loads that do not fit a common pallet, review the custom modular plastic pallets. Send the cargo dimensions and handling details before treating a custom footprint as suitable.
Size does not determine load capacity
Footprint, load rating and racking suitability are separate decisions. A 1200 × 1000 mm pallet can be nestable, three-runner, six-runner or double deck. Those structures do not share one load figure.
Use the selected product page and quotation for static load, dynamic load, racking load, steel reinforcement, material and entry information. Do not copy a rating from another pallet just because the outside dimensions match.
Choose the structure after the footprint
- Nestable pallets can reduce empty storage and return volume.
- Three-runner plastic pallets provide runner support for compatible warehouse handling.
- Six-runner plastic pallets use a full-perimeter style base on the listed models.
- Double deck plastic pallets have usable upper and lower deck structures on the listed models.
- Flat decks provide a continuous top surface, while grid decks allow ventilation and can reduce pallet weight.
Browse the full plastic pallet range after narrowing the required footprint and structure.
Export buyer checklist
Send the following details when asking a supplier to match a pallet to your operation:
- Cargo length, width, height and unit weight
- Carton, bag, drum or other packaging format
- Forklift, pallet jack, conveyor or manual handling
- Floor stacking, racking, cold storage or outdoor use
- One-way shipment, repeated use or closed-loop circulation
- Container type, target loading quantity and destination
- Required colour, logo, anti-slip parts or reinforcement
Common questions
What is the best plastic pallet size for export?
There is no single best footprint. Match the pallet to the cargo and handling system, then check the container plan. A commonly used size can still be wrong for a specific load.
Are pallet dimensions the same as usable deck area?
Not always. Outside dimensions describe the overall footprint. Raised edges, deck details and product shape can affect the usable support area. Confirm the drawing for the selected model.
Can load capacity be chosen from pallet size alone?
No. Load ratings depend on the product design, material, reinforcement and test conditions. Confirm static, dynamic and racking values for the exact model.
Can Zhenghao supply a non-standard size?
Project-specific sizes can be discussed when a suitable model or modular structure is available. Send the cargo size, load, handling method and quantity for review.
Send your pallet requirements
If you are comparing footprints for an export order, send Zhenghao your cargo dimensions and handling requirements. The product page and quotation should remain the final source for model specifications.
