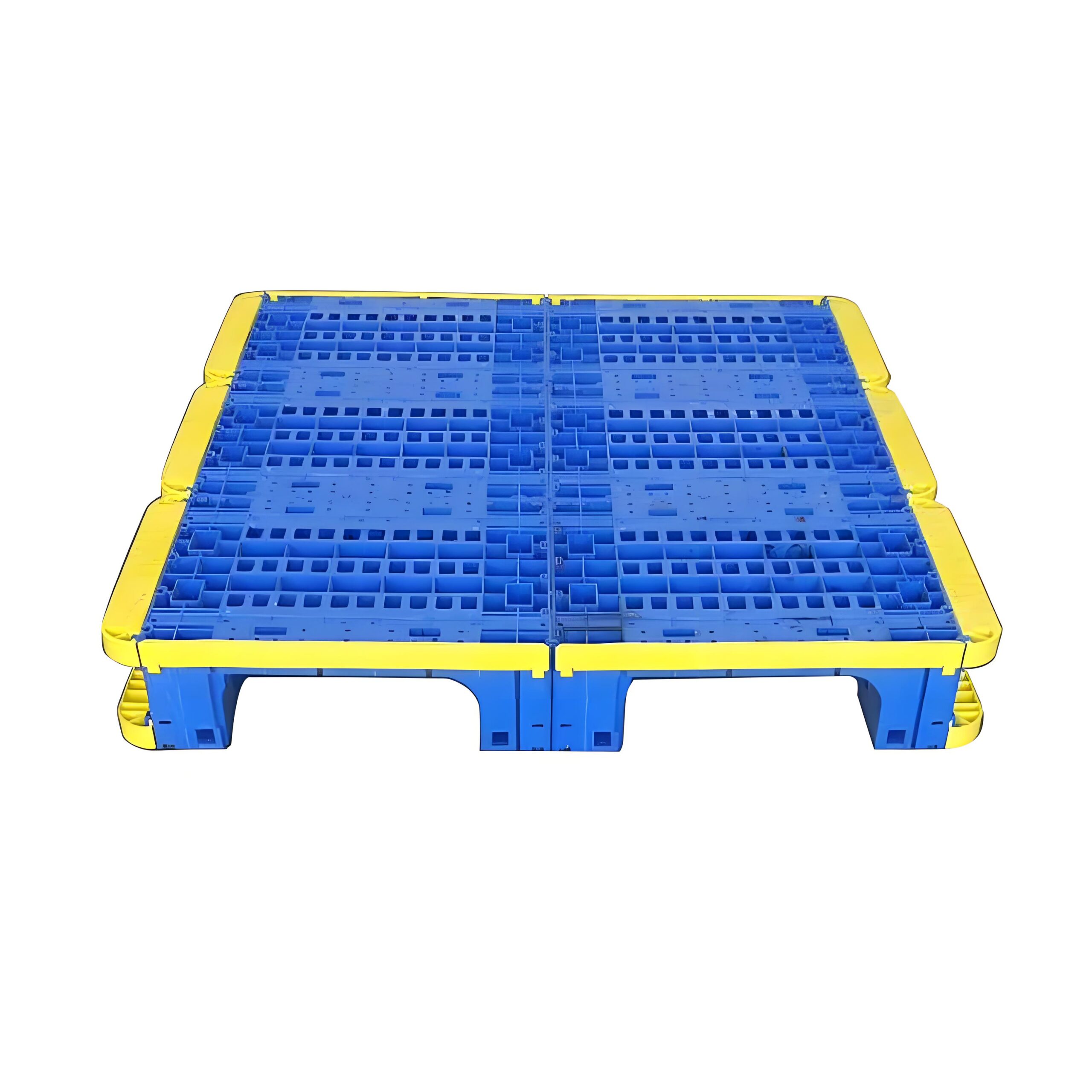

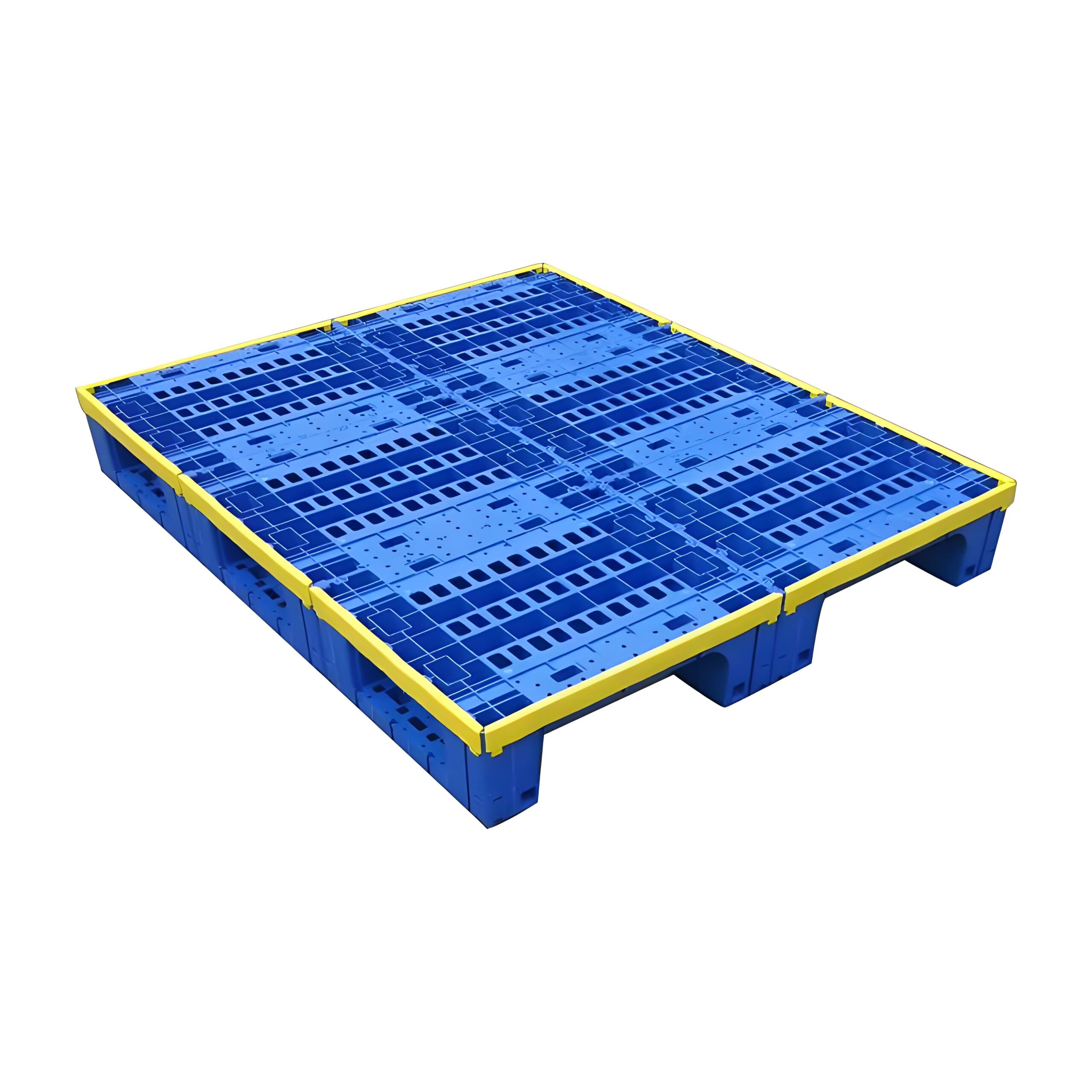

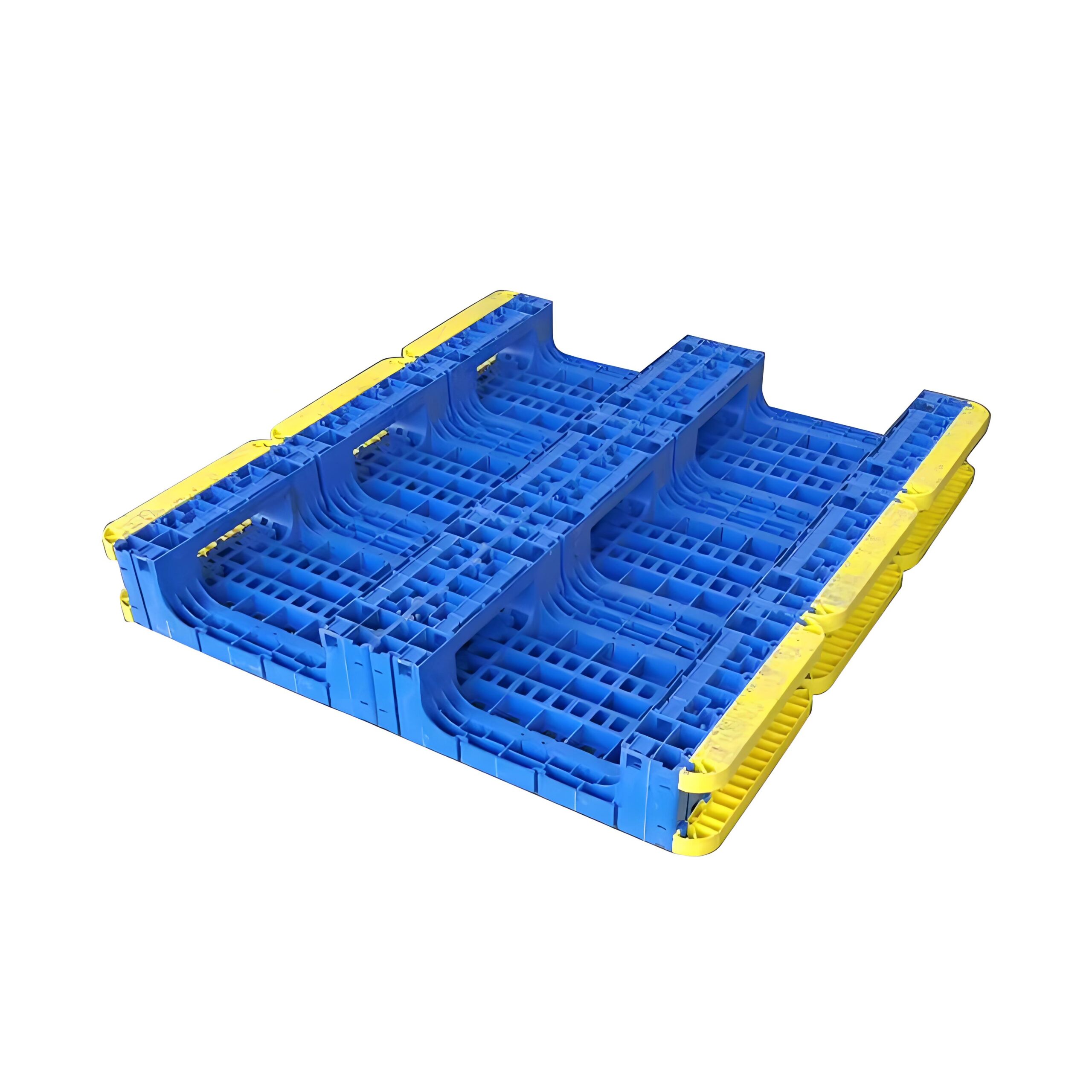

1600 x 1400 mm Lego-style modular plastic pallet
This 1600 x 1400 x 150 mm pallet is assembled from interlocking plastic modules. Each module is injection molded in PP or HDPE, then connected to form the finished pallet. The modular system can be extended from 1 to 5 metres for cargo that does not fit a standard pallet footprint.
Confirmed specifications
| Dimensions | 1600 x 1400 x 150 mm |
|---|---|
| Weight | 45.5 kg |
| Material | PP or HDPE |
| Construction | Injection-molded modules with interlocking assembly |
| Fork entry | Four-way |
| Static load | 6000 kg |
| Dynamic load | 3000 kg |
| Steel reinforcement | 6 top + 4 bottom steel tubes |
| Extension range | 1 to 5 metres |

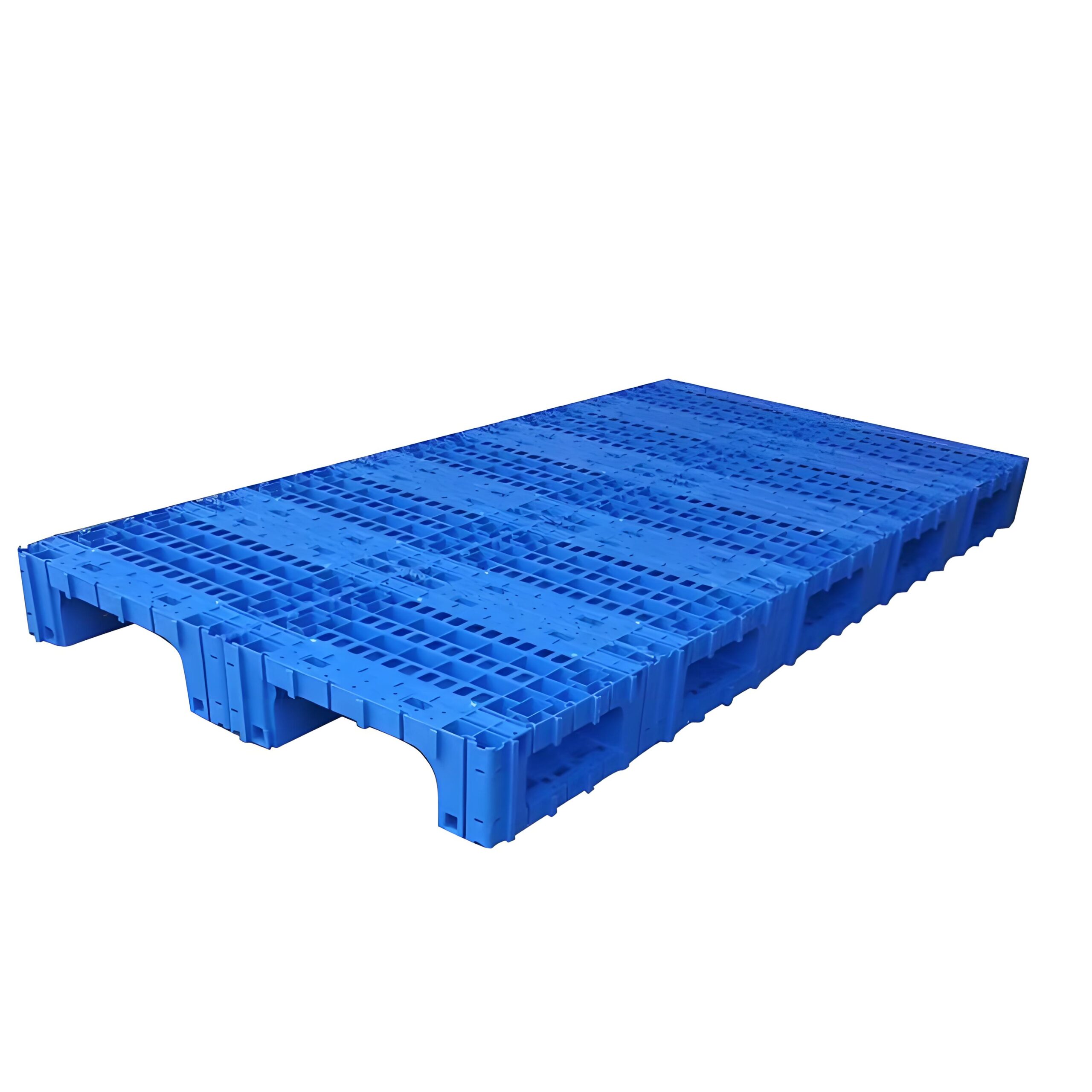

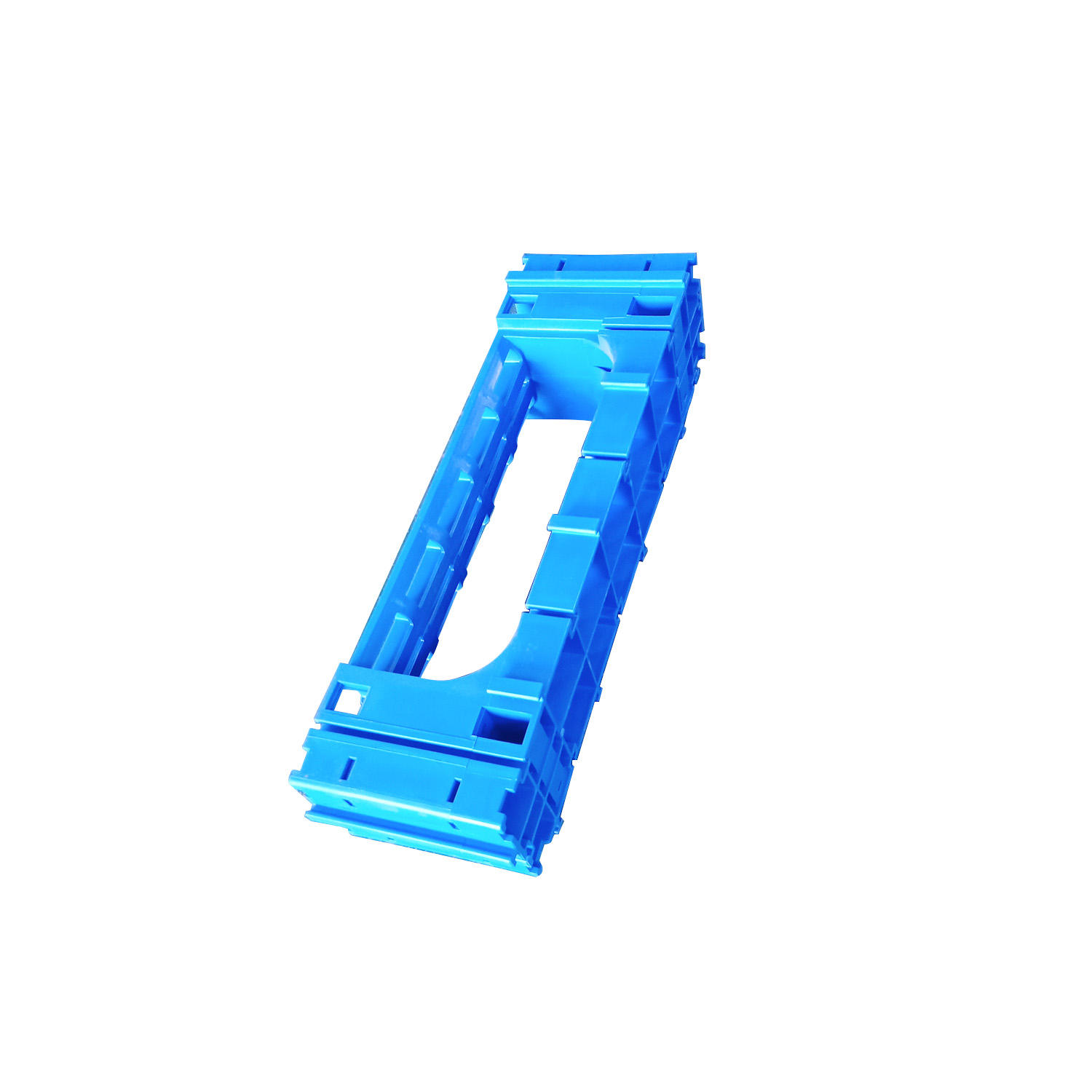

How the modular structure works
The pallet is built from connected sections rather than one fixed-size body. This allows the footprint to be adjusted for long or oversized cargo. If a module is damaged, that section can be replaced instead of discarding the complete pallet.
Single-piece customization is available without a minimum order quantity. The final size and module arrangement still need to be confirmed against the cargo and handling process before production.
Load and handling checks

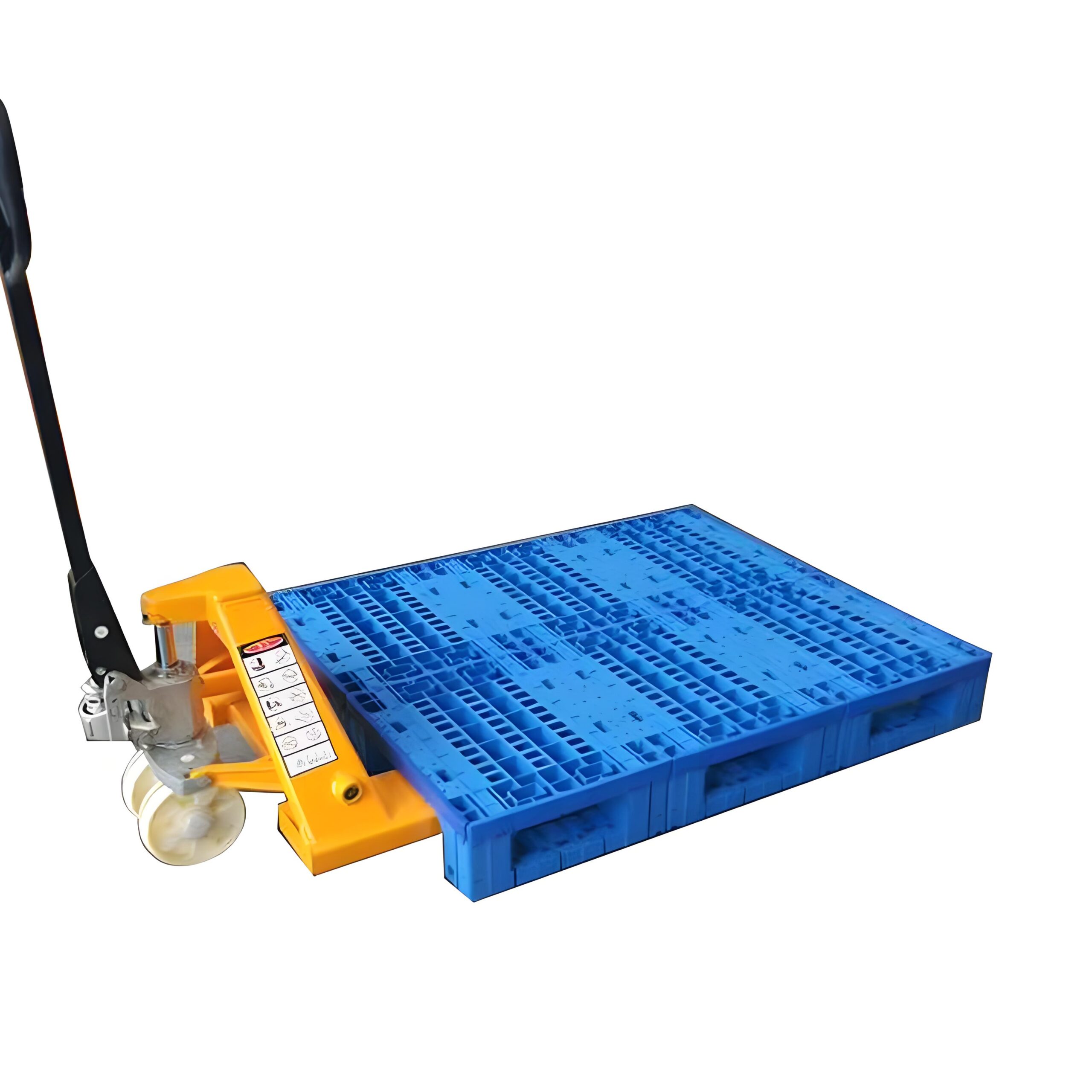

The 6000 kg static load and 3000 kg dynamic load refer to different operating conditions. Buyers should confirm cargo weight, load distribution, support points and forklift handling before ordering. Four-way entry allows handling from each side, but fork length and spacing should match the finished pallet configuration.
Information needed for a quotation
- Cargo length, width, weight and support points
- Required finished pallet dimensions
- Forklift type, fork length and entry direction
- PP or HDPE material
- Quantity, color and logo requirements
- Whether replacement modules should be included
Compare the available models in custom modular plastic pallets. For selection guidance, read the modular plastic pallet guide.
Common buying questions
Is the complete pallet made in one injection-molding cycle?
No. The individual plastic modules are injection molded and then connected to build the finished pallet.
Can the pallet length be changed?
Yes. The modular system can be configured from 1 to 5 metres. The exact size should be specified when requesting a quotation.
Can a damaged section be replaced?
Yes. The modular construction allows an individual section to be replaced.
